BTF-LIGHTING FCOB RGB WS2811 IC WS2812B WS2811 WS2813 SP107E Music Bluetooth Full Color Controller Support Almost All The LED IC Chip Suit for LED Strip,Matrix Panel,Module Buli-in Mic/AUX Input

Description

Price: $20.99
(as of Jun 02, 2025 15:21:50 UTC – Details)

Product Description

Product Parameter :

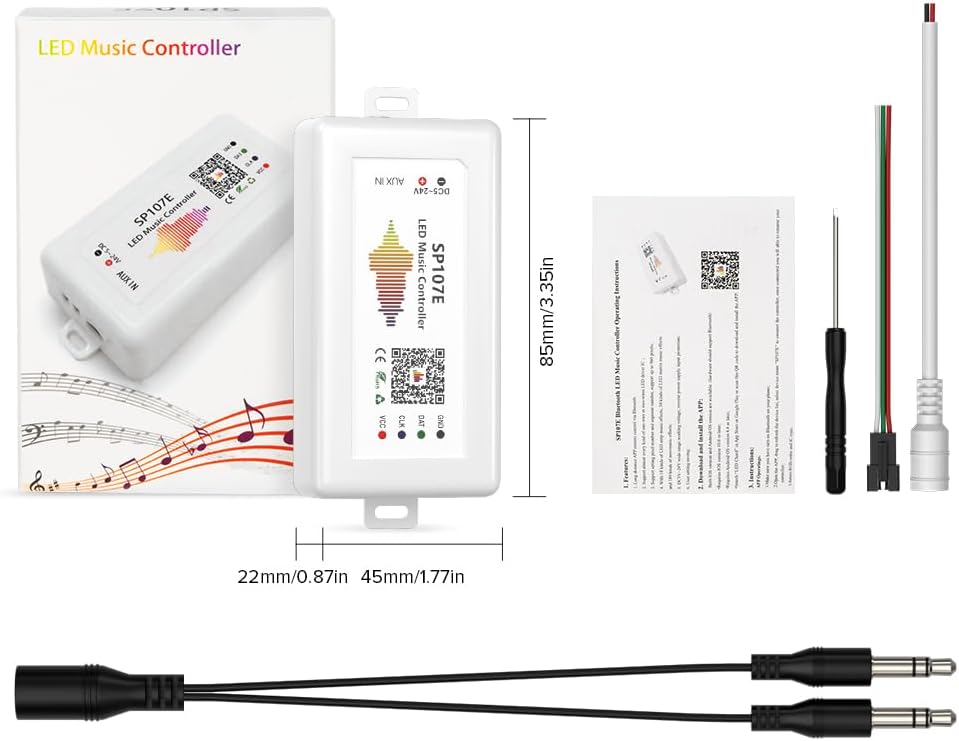

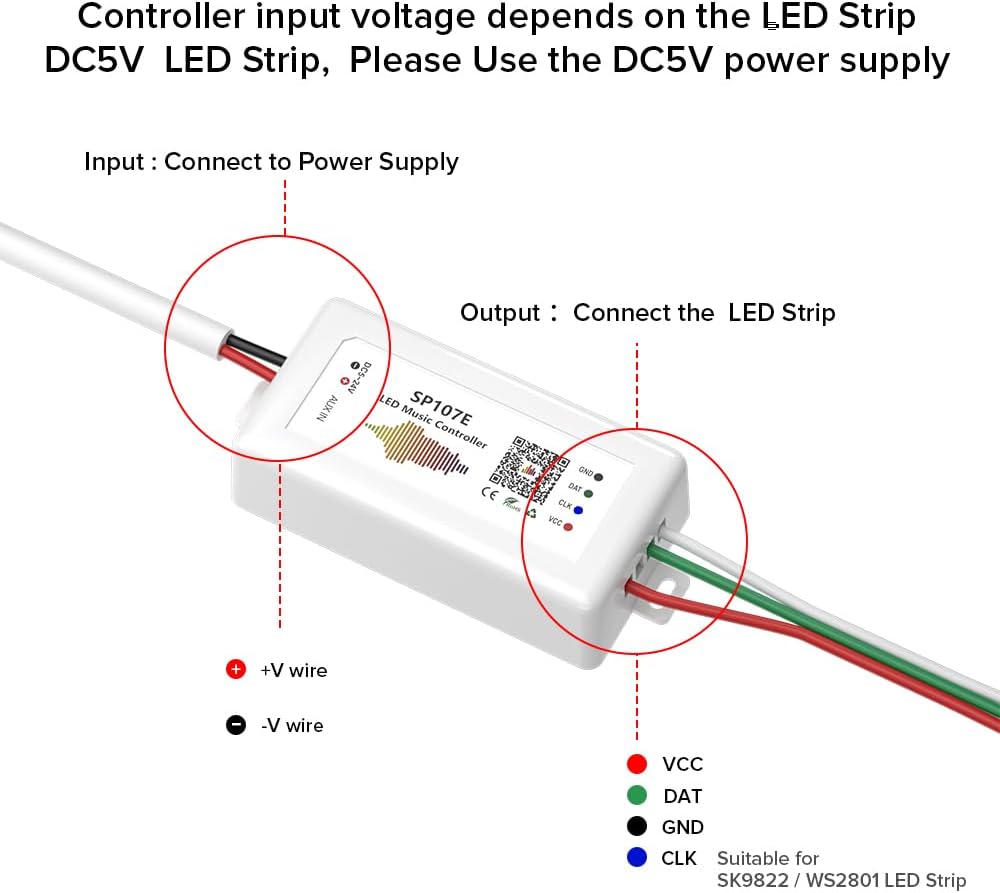

Name : BTF-LIGHTING SP107E Addressable LED Music Controller Working voltage: DC5V~24V (voltage depends on the led strip that you use) Max Control pixels: Control up to 960 Pixels Remote distance: 20 Meters Working temperature : -20℃~60℃ Product size: 85mm*45mm*22mm Package List : 1x SP107E music controller, 1x 3pin JST connector, 1x Female DC connector, 1x 1 to 2 Audio cable, 1x Mini screw driver . Support LED IC : Supports RGB IC types .Such as FCOB RGB WS2811 IC, WS2812B,WS2811,WS2813,WS2815,SK6812RGB,SK6812-RGBW, APA102, WS2801,SK9822, LPD8806 etc strip light .WS2812B 8X8 ,8X32 ,16X16 ,22X22 LED matrix . NOTE : The controller cannot regulate the output voltage at the VCC. That means the output voltage of your power supply must be the same as the work voltage of your led lights. If your lights need 5V input, please use a 5V power supply, never use 12V or 24V power supply.

It can support WS2812B and WS2813 but there is no option on the setting page. Please select WS2811 IC chip.when you control WS2812B and WS2813 LED strip. When connecting WS2813 or WS2815 LED strip, please connect Bi wire to GND port.

APP Control

1 Step 1 ~ Step 3

2 Step 4 ~ Step 5

Is Discontinued By Manufacturer ‏ : ‎ No
Product Dimensions ‏ : ‎ 1.38 x 3.15 x 0.67 inches; 2.82 ounces
Item model number ‏ : ‎ SP105E
Date First Available ‏ : ‎ September 17, 2018
Manufacturer ‏ : ‎ BTF-LIGHTING Technology Co., Limited
ASIN ‏ : ‎ B07HFVW1G7
Country of Origin ‏ : ‎ China

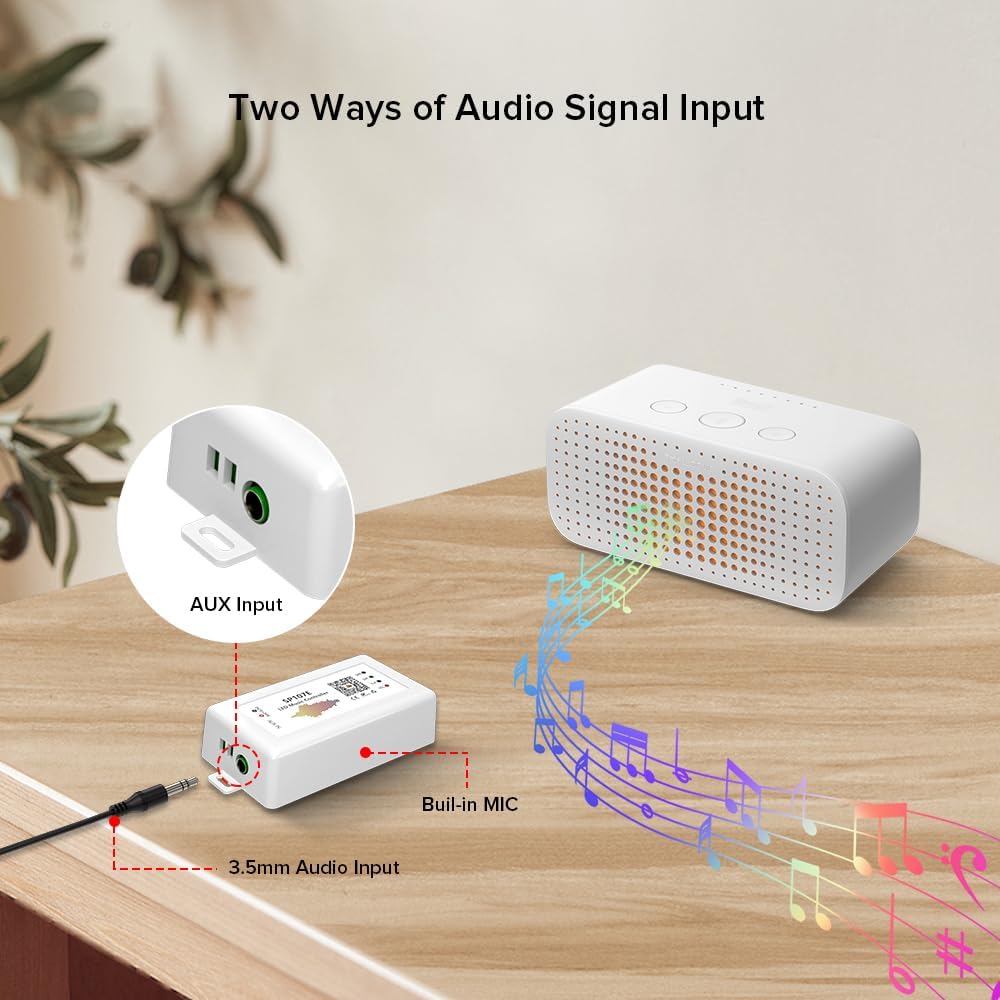

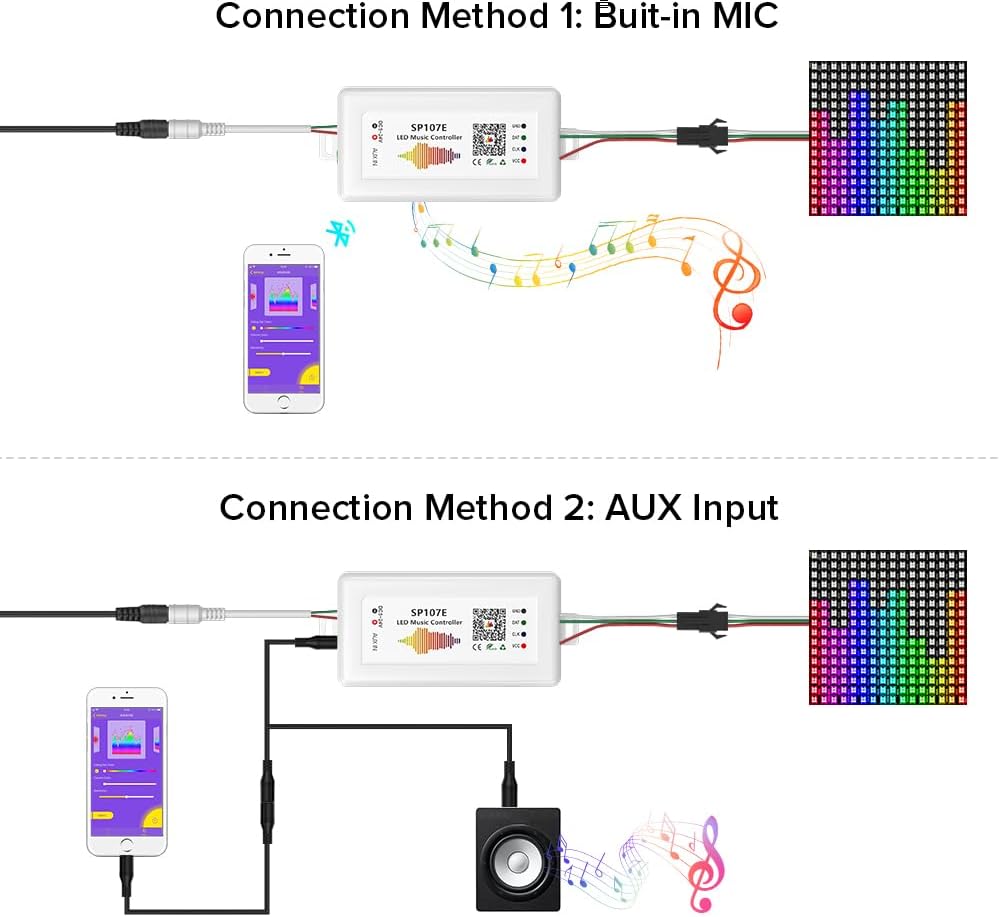

AUX Input and Built-in microphone.The first mode is 3.5mm audio input.It can block out the outside world . The second mode is the built-in mic. It captured the sound of the outside world. The Sensitivity of two modes can be easily adjusted.If your LED light is 5V,please use 5V power supply.
Suit For led Strip and LED Matrix Panel .Compatible with many LED driver IC except the no IC chip led strip. It is also suitable for many DIY projects.You can set up number of segments and pixels number of each segment according to the LED pixels array of your lights. This feature is perfect for LED matrix. or other DIY project.
30+18+180 Kinds Of Lighting Effect .There are 30 kinds of music lighting effects for LED matrix panel ,18 kinds of music lighting effects for led strip .180 kinds of non-music lighting effects . Music mode and non-music mode can be arbitrarily changed. It can play lighting effect automatically. Control max 960 IC chips.
Supports RGB IC types and is compatible with almost every kind of one-wire or two-wire LED driver IC , such as FCOB RGB WS2811 IC，WS2812B,WS2811,WS2813,WS2815,SK6812RGB,SK6812-RGBW, APA102, WS2801,SK9822, LPD8806 etc strip light .WS2812B 8X8 ,8X32 ,16X16 ,22X22 LED matrix .
Adjustable . The speed , the brightness ,the number of pixels ,color order and the sensitivity are adjustable. When you connect SK6812-RGBW LED , the pure white channel can be adjusted individually.
LED Strip mode: Pixels/SEG max 150pixel.1 Year Warranty .Providing technical services .A 24-hour online hotline allows clients in the US write in with any question you might have.
Color calibration. When the app color is inconsistent with the color of the LED strip, where green is blue and blue is green ，You can use the APP to calibrate the colors to make them consistent.6 color sequences, RGB, RBG, BRG, BGR, GRB, GBR, select one of them for calibration
Insufficient power supply will cause the controller to lose control, the color of the LED strip is frozen, the Bluetooth is disconnected . Please note : When you Light up 1 color（red or green or blue or pure white) 0.1W/LED . 2 colors (red+green) 0.2W/LED , 3 colors (red+green+blue=mixed white) 0.3W/LED.If you don’t know which power supply can be used for your LED project, you can email us
It is not recommended to light up the full brightness white light for a long time, because the main function of the addressable RGB IC light strip or fairy string is chasing rainbow effects .
