POWERTEC 72251 120V/230V Dual Voltage Paddle Switch w/Deep Switch Box & Hardware, 3HP, Knee Paddle for Power Tools Fast Power Off. Fits Table Saw, Router Table, Drill Press, Bench Saw, Band Saw

Description

Price: $29.99
(as of Mar 12, 2025 22:32:29 UTC – Details)

Introducing the Paddle Switch Box with Deep Switch Box Hardware Set by POWERTEC-your comprehensive solution for safety and functionality in your workshop.
This setup combines a high-quality emergency safety switch with a durable, compact deep switch box, ensuring seamless integration into your power tools or electrical systems.

Paddle Switch Box Features:

• Enhanced Safety: Equipped with a large red emergency stop paddle for easy visibility and quick action during emergencies. The green start button can be secured with a cable lock for additional safety.
• Versatile Design: Compatible with most popular power tool brands, including Craftsman, Shop Fox, and Grizzly. Ideal for table saws, drill presses, band saws, router tables, and dust collection systems.

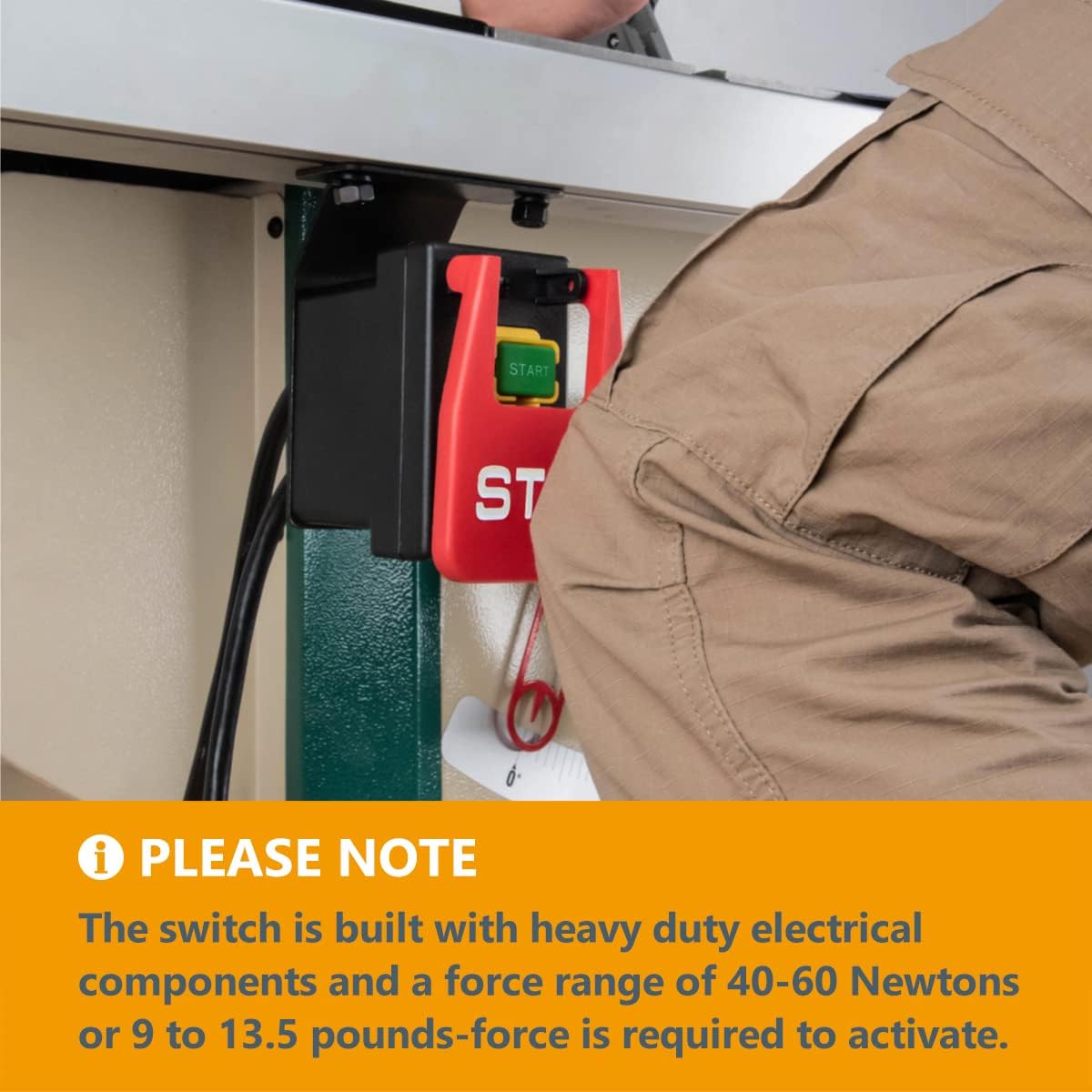

• Heavy-Duty Construction: Built with durable plastic paddle and robust electrical components, requiring 40-60 Newtons (9-13.5 pounds-force) for activation.
• Specifications:
  • Phase Type: Single Dual
  • Voltage: 110V/220V
  • Rated Current: 2 HP/35 amps (120V) | 3 HP/20 amps (230V)
  • Certifications: UL, TUV, CSA, CE, ETL standards

Deep Switch Box Features:

• Durable Build: Made from heavy-duty plastic for long-lasting use, with two threaded cable glands to protect wires from damage.
• Easy Installation: Includes two cross-recessed tapping screws and nylon spacers, along with compatibility for deep gang boxes or standard boxes with an extension ring.

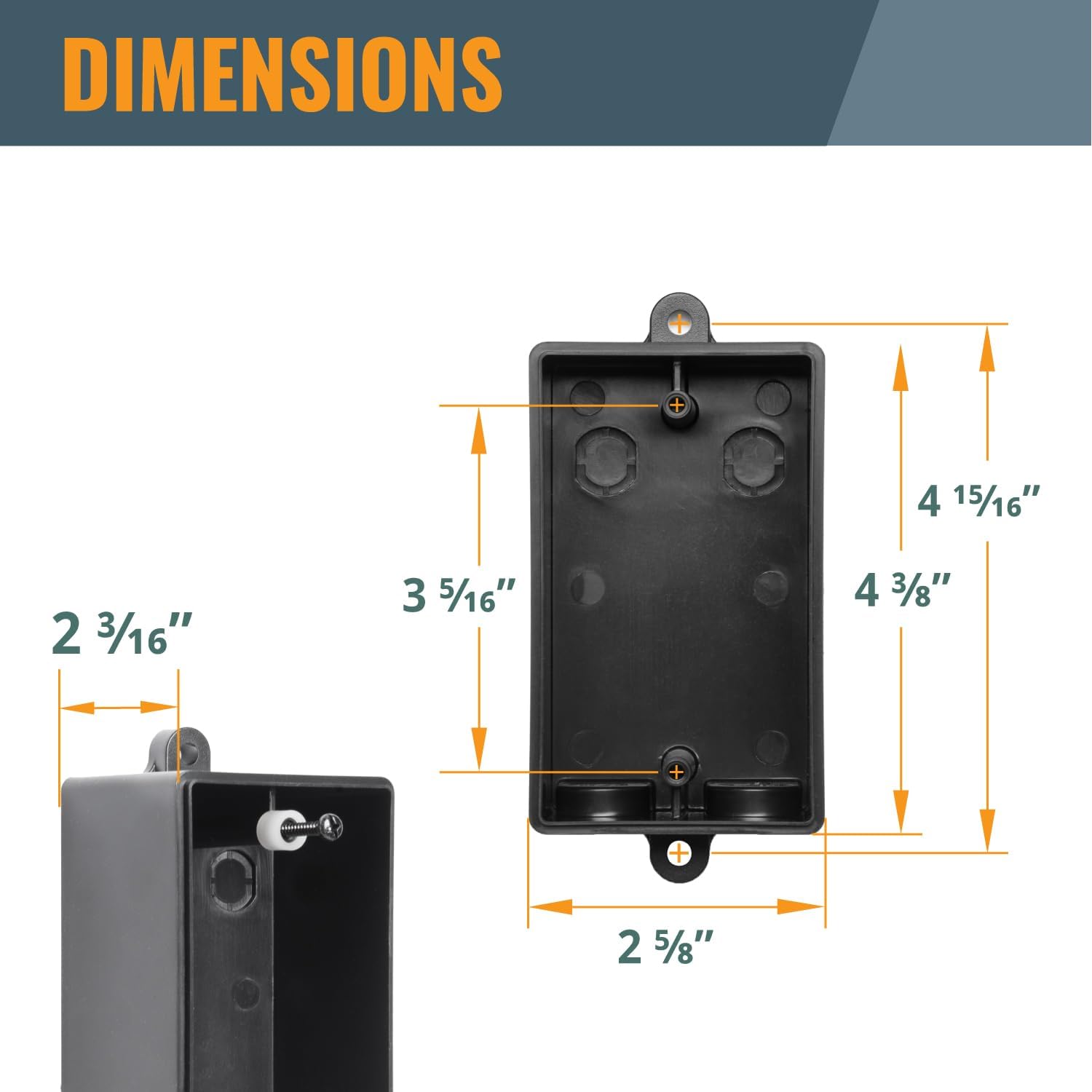

• Compact Dimensions: 2-5/8″ wide, 4-3/8″ long, 2-3/16″ deep.

Package Compatibility:

The deep switch box is compatible with POWERTEC Switches 71007, 71008, 71651, 71652, 71054, and 71577 (sold separately).
Whether you’re upgrading your safety measures or mounting new switches, this all-in-one solution offers unmatched reliability, durability, and ease of use. Perfect for professionals and DIY enthusiasts alike!

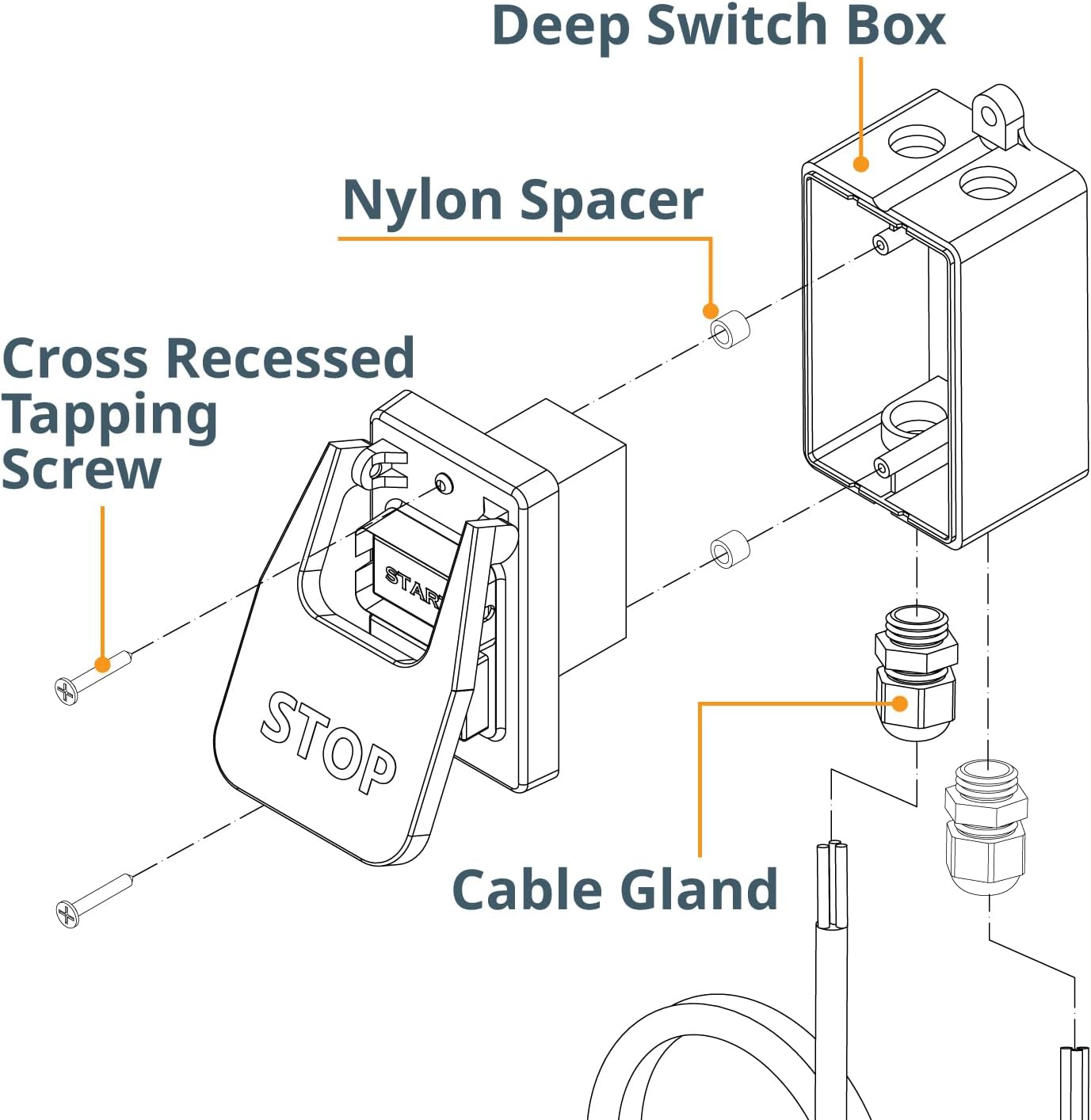

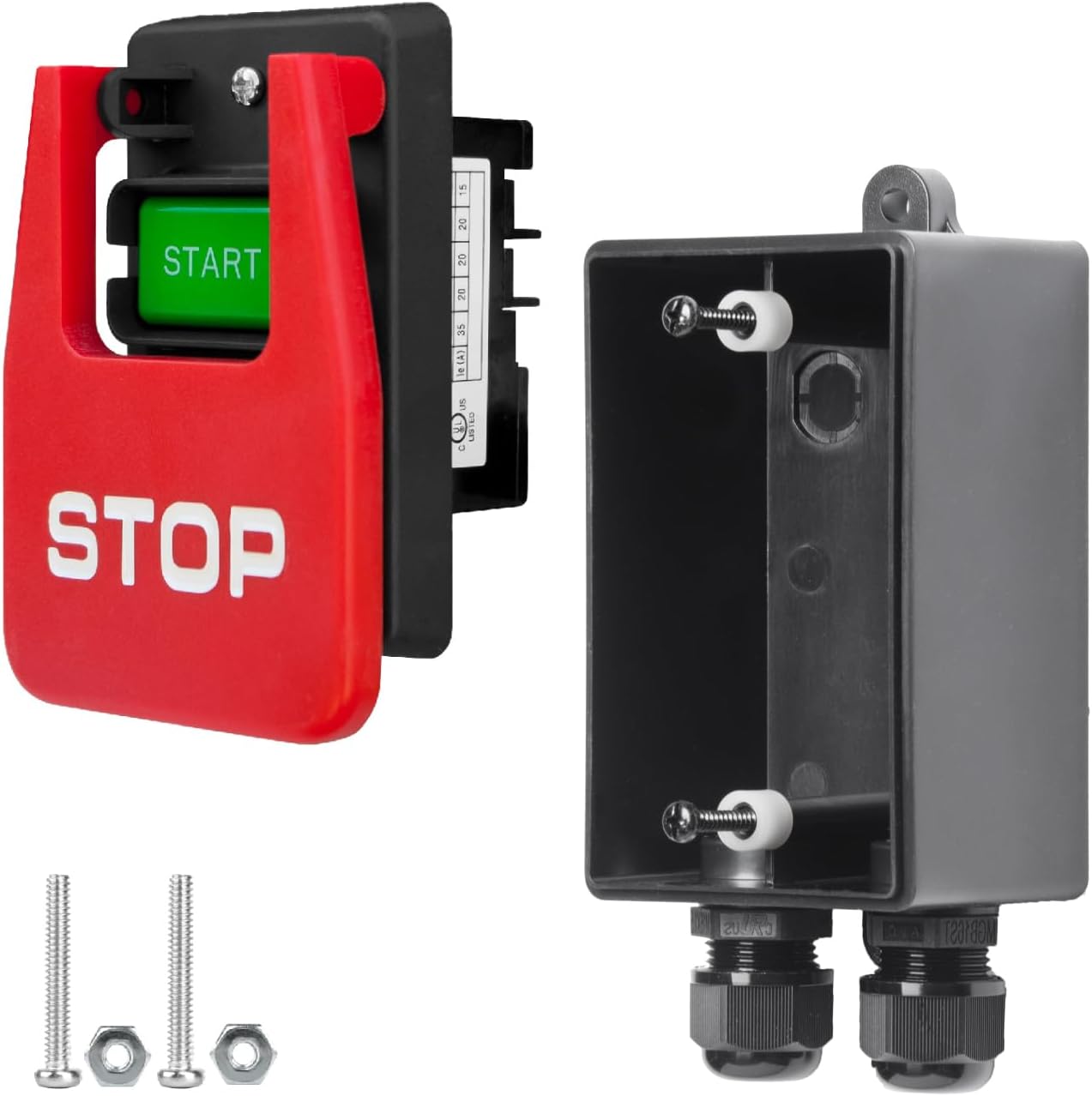

INCLUDES: (1) Paddle Switch (POWERTEC 71007) with hardware kit (71646) ; (1) Gang Box with (2) threaded cable glands, (2) nylon spacers and (2) cross recessed tapping screws
SPECIFICATIONS: Dual Voltage: 120V/230V; Single Phase | Rated Current: 28 amps(or 2HP) at 120V, 16 amps(or 3HP) at 230V | Fits deep gang boxes and standard gang boxes with extension ring
KIT FUNCTION: Provides you with a master or emergency power off safety switch box designed to safeguard your table saws, drill press, belt sanders, jointers, dust collectors and other woodworking machines.
PUSH-BUTTON POWER: Switch features a simplistic, color-coded design with indented/bump style buttons to signify the switch has been opened or closed. It’s also extremely easy to install and use: Push the green start to turn your machine on. Push the red stop paddle to utilize the panel as a master shut off switch.
CONSTRUCTION: This switch box is manufactured from a specialized flame-retardant compound, engineered to resist ignition and effectively slow the spread of flames during a fire, ensuring safety
